Front Fork Assembly

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

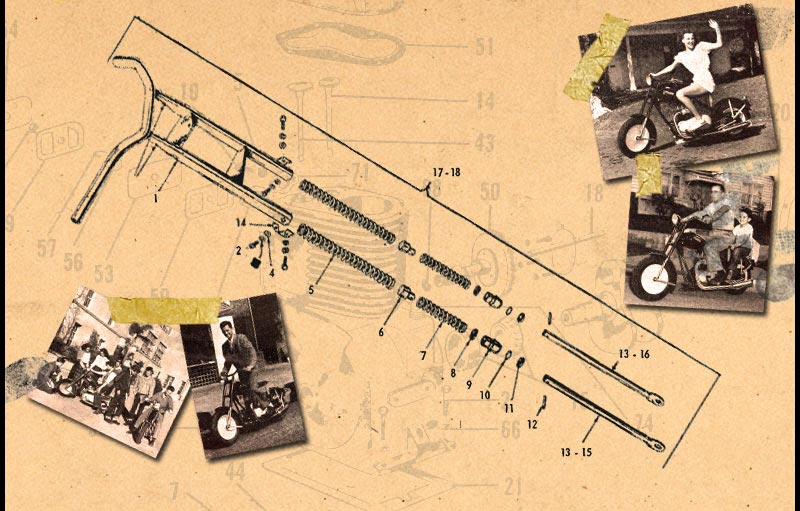

#	PART #	NOMENCLATURE
1	M-1153	Front Fork
2	M-1175	Screw - Hex Hd Cap, 250-28 x .375
4	M-1177	Washer - Fiber, .250 x .562 x .094
5	M-1106	Spring - Front Fork, Upper
6	M-1107	Piston - Front Fork Rebound
7	M-1105	Spring - Front Fork Lower
8	M-1112	Ring - Oil Retaining
9	M-1090	Bushing - Front Fork
10	M-1118	O-Ring - .125 x 1.00 ID x 1.250 OD
11	M-1133	Washer - Felt
12	M-1148	Pin - Rebound Piston Retaining
13	M-1108	Tube - Internal Fork (Disc Wheel Models)(Right and Left)
14	M-2506	Lock - Fork Bushing
15	M-2590	Tube - Internal Fork (Right) Spoke Wheel Models
16	M-2598	Tube - Internal Fork (Left) Spoke Wheel Models
17	M-1152	Fork Assembly Complete - Disc Wheel Models
18	M-2601	Fork Assembly Complete - Spoke Wheel Models
